SKU: BA68

Simpson BA68 Beam Hanger, 12 Gauge - G90 Galvanized

Simpson BA68 Beam Hanger, 12 Gauge - G90 Galvanized!

Skip to product information
1 of 2

Continue Browsing

BA I-Joist & SCL Hangers

$21.76

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 6 hours 29 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

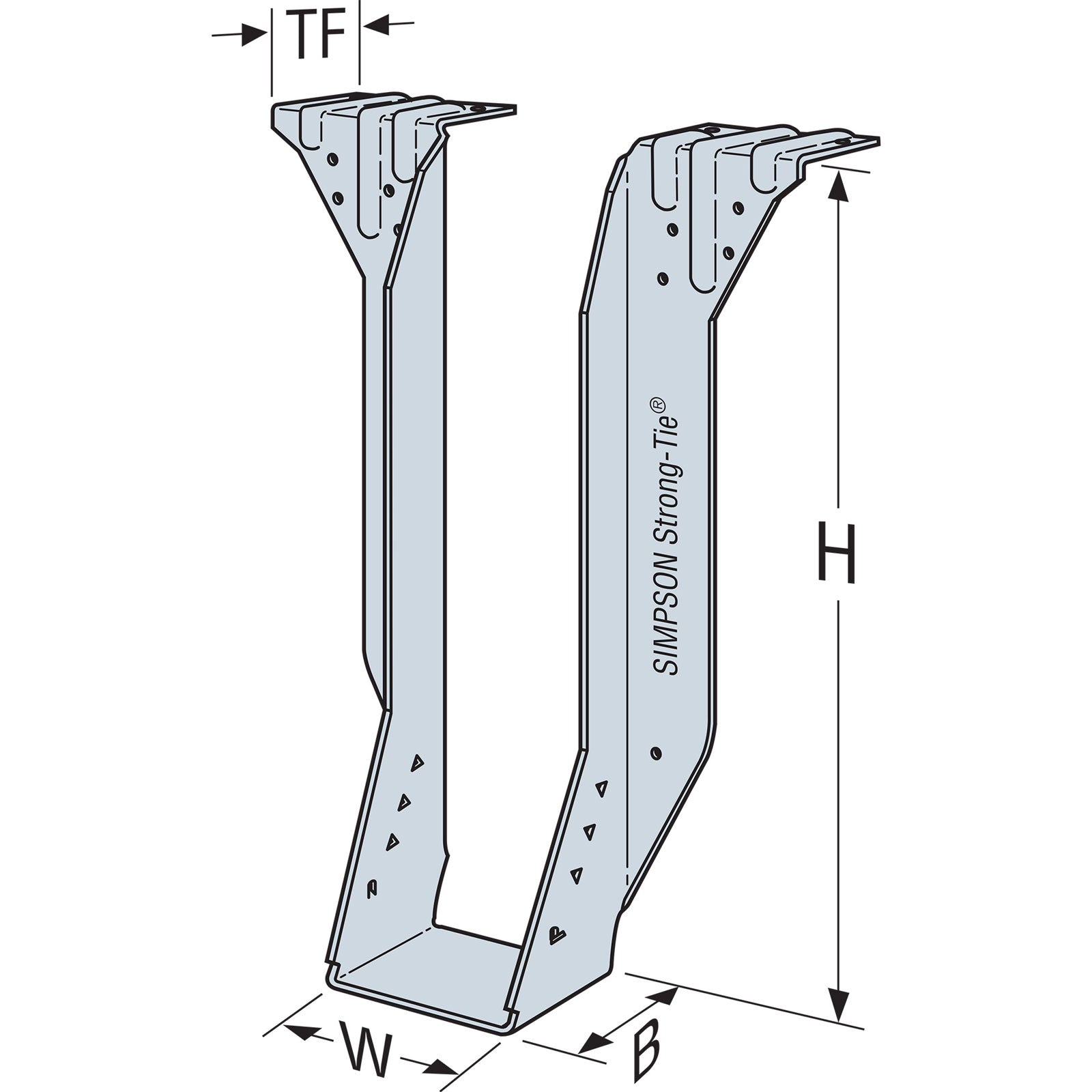

Specifications

Finish: G90 Galvanized
Material: Carbon Steel
Fasteners required: Header - (16) 0.162 x 3-1/2" Nails Joist - Min: (2) 0.148 x 1-1/2" Nails - Max: (8) 0.148 x 1-1/2" Nails
Height: 7-1/8"
Joist size: 6" X 8"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 12 Gauge
Width: 5-1/2"
Description

The Simpson BA Beam Hangers provide exceptional load-bearing capacity for beam-to-beam and girder-to-girder connections, making them an essential component for high-strength wood framing. Engineered for use with both solid sawn lumber and engineered wood, these top-flange hangers ensure superior stability and structural integrity in demanding applications.

Made from high-quality galvanized steel, BA hangers offer enhanced corrosion resistance, making them suitable for indoor and protected outdoor environments. Their wide-seat design ensures a secure, load-distributing connection, reducing stress on beams and improving long-term performance.

Key Features:

  • Heavy-Duty Load Capacity: Designed for beam-to-beam and girder connections in high-load applications.
  • Top-Flange Installation: Provides a strong, stable connection to supporting members.
  • Wide-Seat Design: Helps distribute loads evenly, reducing stress on connections.
  • Compatible with Solid Sawn & Engineered Wood: Suitable for LVL, PSL, and other engineered lumber.
  • Durable G90 Galvanized Steel Construction: Ensures superior corrosion resistance and long-lasting performance.

Installation Guidelines:

  • Secure the hanger to the support beam using appropriate nails or structural screws as per manufacturer recommendations.
  • Ensure the supported beam is properly seated within the hanger to maximize load capacity.
  • Install using top-flange mounting, allowing for a direct and stable connection to primary structural members.
  • Follow local building codes and manufacturer guidelines for proper fastener selection and spacing.

Applications:

  • Beam-to-Beam Connections: Ensures a secure and stable attachment between intersecting beams.
  • Girder-to-Girder Connections: Provides superior load transfer in multi-girder structures.
  • Floor & Roof Framing: Ideal for heavy-duty framing in residential, commercial, and industrial buildings.
  • Deck Construction: Supports large deck beams and outdoor structures where stability is key.
  • Engineered Wood Framing: Compatible with LVL, PSL, and glulam beams for modern construction needs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
